Create Multi-Cluster Federation

Tip

Prepare the following information from the remote deployment before you start:

1. The remote cluster ID (in the format cls-xxxxxxxxxxxxxxxxxxxxx): this can be copied from your browser’s address bar when viewing the remote cluster’s page.
2. The endpoint URL of the remote deployment (in the format https://federation.example.com:5007).
3. An API key on the remote deployment that grants access to the federation endpoint.

Note

Any actions performed through the federation will use this API key, so ensure it has the necessary permissions. Refer to the Connectivity section for more details.

Important

The endpoint URL must use https:// when communicating across clusters due to the transmission of sensitive information. http:// may be used for development or testing, or when the endpoint is on a trusted network. Do not use http:// in production or on untrusted networks.

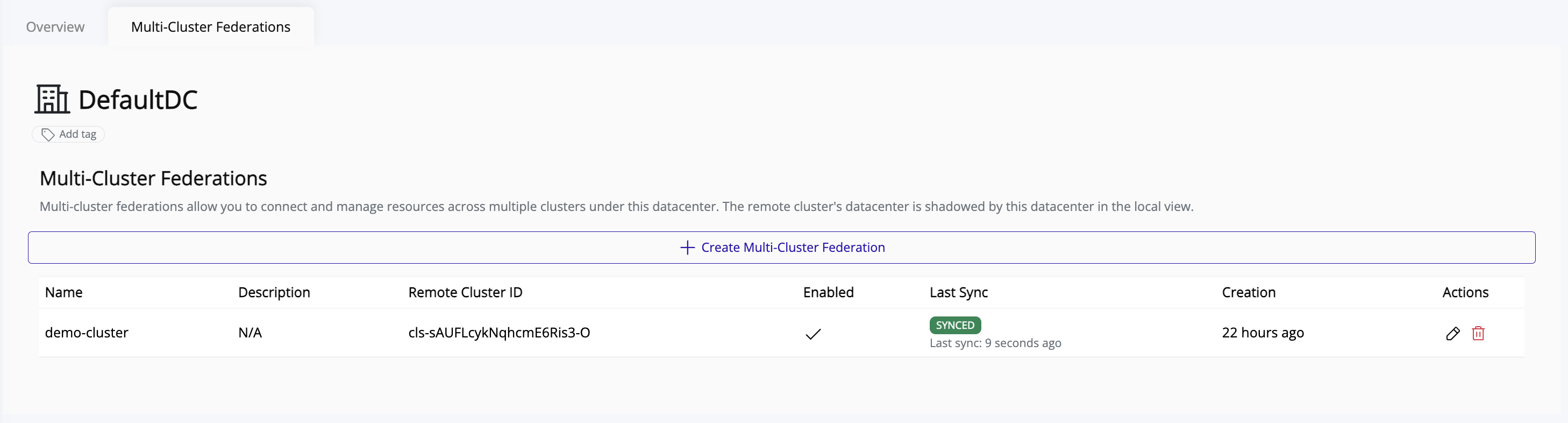

1. Select the datacenter in the resource tree and view the page on the right. Click on the Multi-Cluster Federations tab in the right pane:

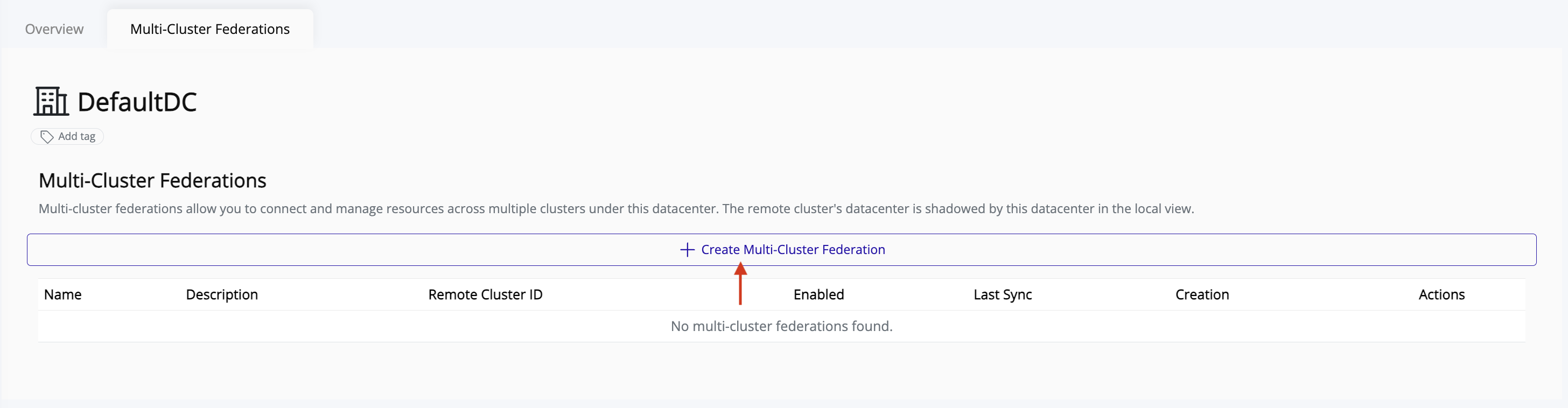

2. Click the Create Multi-Cluster Federation button:

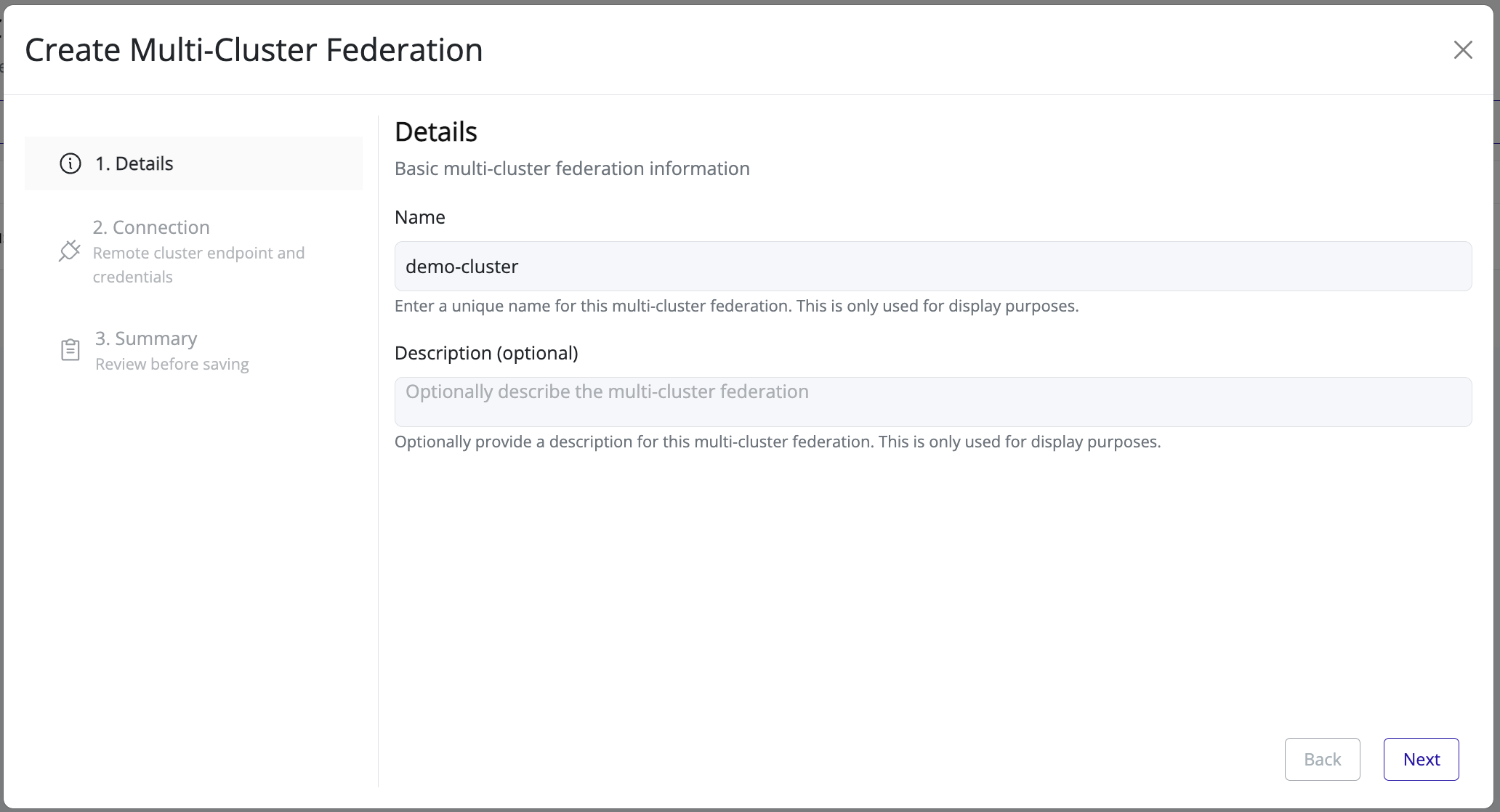

3. In the Details step, provide basic information:

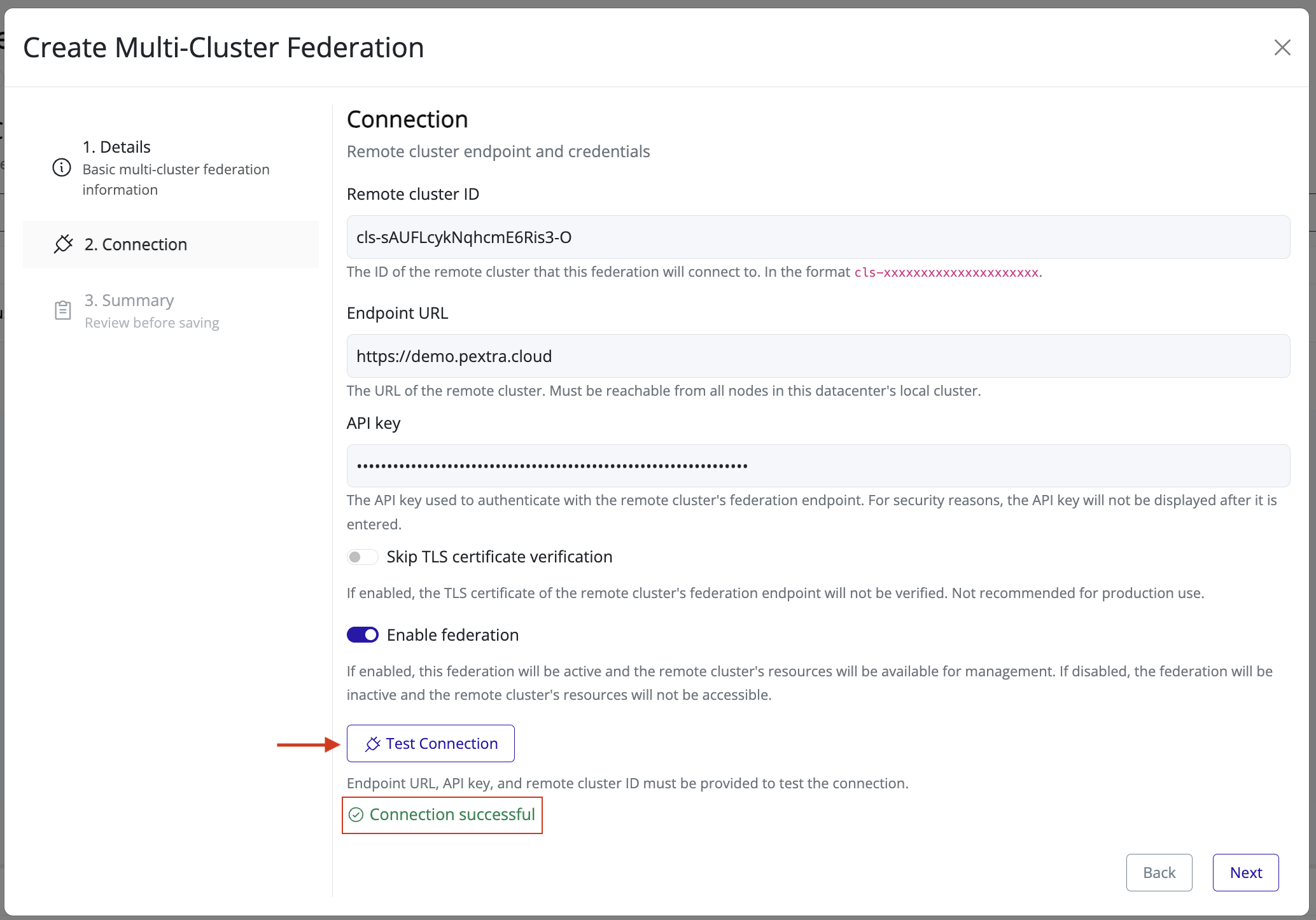

4. In the Connection step, provide the remote cluster’s connection details (remote cluster ID, endpoint URL, and API key):



5. Click Test Connection to verify the remote cluster’s connection details. Proceed to the Summary step if the connection is successful:

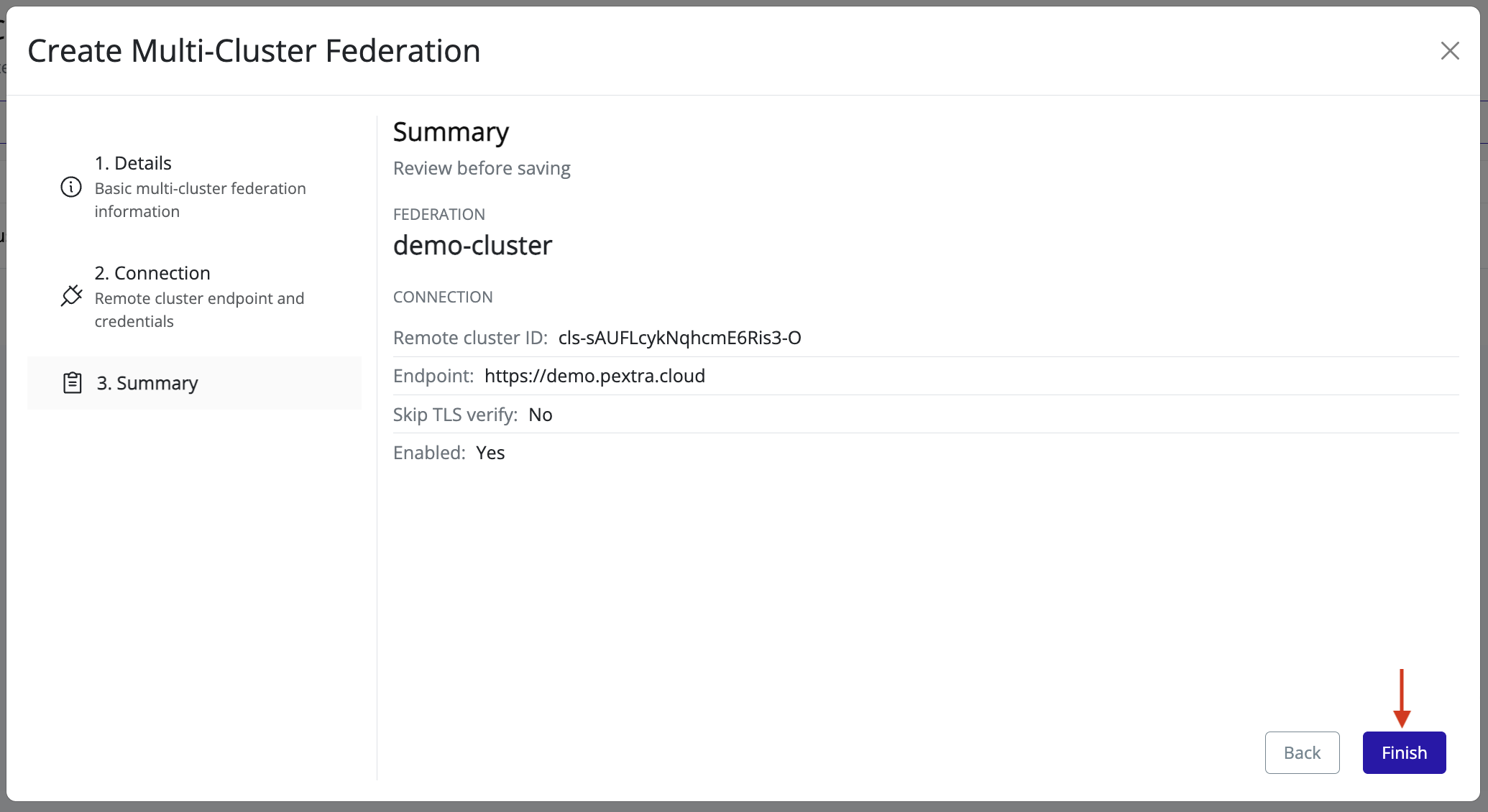

6. Review the summary and click Finish to finalize:



The multi-cluster federation will immediately become active, allowing the local datacenter to communicate and with the remote cluster.

To update the federation settings, refer to the Edit Federation section.
